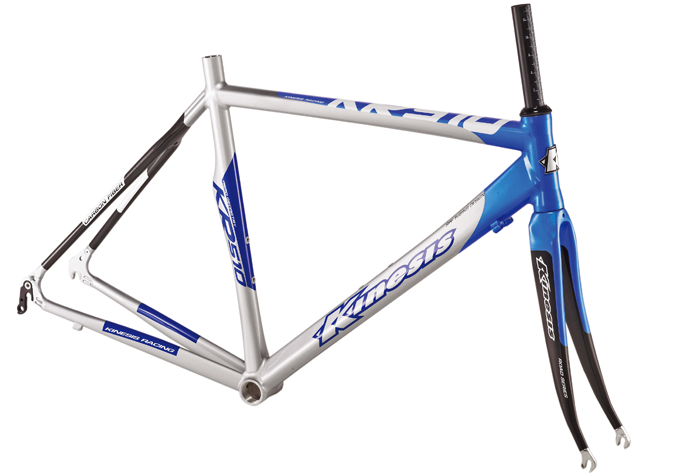

KR-510

KR-510 uses the SPF technology for its top tube, down tube and same seat tube as KR-600. The SPF top tube is wide where it meets the head tube for stiiffness, and the down tube is wide where it meets the BB for stiffness. With wishbone carbon seat stays.
Ultra-strength bonded carbon fiber seat stays.
SMT (Smooth welding).








Optional colors


Seatpost Ø 27.2mm
Seat tube Ø 31.8mm
Weight: 1475g (MED)
SIZE ET AT ST HT BD RC SA HA FL FO
XSM 520 508 470 100 67.5 405 75.0° 71.5° 368 45
SML 535 524.4 500 110 67.5 405 74.5° 72.0° 368 45
MED 550 536.7 530 140 67.5 405 73.5° 72.5° 368 45
LRG 570 555.2 560 170 67.5 405 73.0° 72.75° 368 45
XLG 595 580.1 590 200 67.5 405 73.0° 72.75° 368 45
